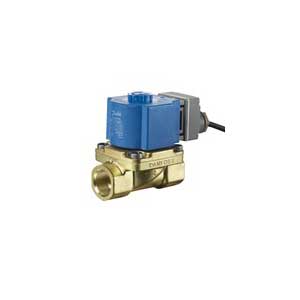

Danfoss EV260B Servo-operated 2-way proportional solenoid valve

Manufacturer: Danfoss

EV260B is a proportional (modulating) servo-operated 2-way solenoid valve program with connections from 1/4” to 3/4”.Through stepless regulation of the coil current, the armature can be placed in any position in the armature tube, thus setting the valve to any position between completely closed and completely open.The valve is fully open when the coil current has reached its maximum value.

More+

Features Model

For water, oil and similar neutral liquids
Linear characteristic throughout the regulation range
Closes on power failure (fail-safe function)
Flow range from 0.5 – 12.7 m³/h
Differential pressure from 0.5 – 10 bar
Media temperature from -10 – 80 °C
Ambient temperature: Up to 50 °C
Coil enclosure: Up to IP67
Viscosity: Up to 50 cSt
Thread connections: From G 1/4 – G 3/4
DN 6 – 20
Brass version NC
Standard 4–20 mA or 0–10 V DC pilot signal
Available with G and NPT thread.

Mfr. Part No.	Description
032U8025	Proportional, N C, G 1/2, 10,00 mm, PTFE, 0,5 - 10 bar
032U8052	Proportional, N C, G 1/4, 6,00 mm, PTFE, 0,5 - 10 bar
032U8053	Proportional, N C, G 3/8, 6,00 mm, PTFE, 0,5 - 10 bar
032U8054	Proportional, N C, G 3/8, 10,00 mm, PTFE, 0,5 - 10 bar
032U8055	Proportional, N C, G 1/2, 10,00 mm, PTFE, 0,5 - 10 bar
032U8056	Proportional, N C, G 1/2, 15,00 mm, PTFE, 0,5 - 10 bar
032U8057	Proportional, N C, G 3/4, 20,00 mm, PTFE, 0,5 - 10 bar
032U8062	Proportional, N C, NPT 1/4, 6,00 mm, PTFE, 0,5 - 10 bar
032U8063	Proportional, N C, NPT 3/8, 6,00 mm, PTFE, 0,5 - 10 bar
032U8065	Proportional, N C, NPT 1/2, 10,00 mm, PTFE, 0,5 - 10 bar
032U8066	Proportional, N C, NPT 1/2, 15,00 mm, PTFE, 0,5 - 10 bar
032U8067	Proportional, N C, NPT 3/4, 20,00 mm, PTFE, 0,5 - 10 bar
032U8097	Proportional, N C, G 3/4, 20,00 mm, PTFE, 0,5 - 10 bar
