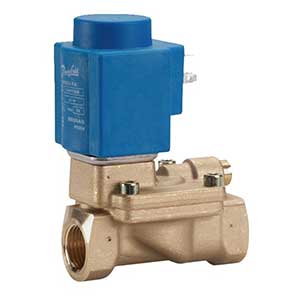

Danfoss EV220B Servo-operated 2/2-way solenoid valve

EV220B 6-22 Feature:

• For water, oil, compressed air and similar neutral media
• Flow range from 0.2 – 19 m³/h
• Differential pressure from 0.1 – 20 bar
• Media temperature from -30 – 100 °C
• Ambient temperature: Up to 80 °C
• Coil enclosure: Up to IP67
• Thread connections: From G ¼ – G 1
• DN 6 – 22
• Viscosity: Up to 50 cSt
• Brass version NC and NO
• DZR brass version NC
• FKM and EPDM
• Also available with NPT thread

EV220B 15-50 Feature:

• For water, steam, oil, compressed air and gases
• Flow range for water: 1.3 – 160 m³/h
• Differential pressure: 0.3 – 16 bar
• Media temperature from -30 – 140 °C
• Ambient temperature: Up to 80 °C
• Coil enclosure: Up to IP67
• Thread connections: From G ½ – G 2
• DN 15 – 50
• Viscosity: Up to 50 cSt
• Water hammer damped
• Built in filter for protection of pilot system
• Adjustable closing time available
• EV220B NC and NO brass version for neutral liquids and gasses
• EV220BD NC DZR version for neutral and slightly aggressive liquids and gases
• EV220BSS NC Stainless steel version for neutral and aggressive liquids and gases
• Also available with NPT thread.

EV220B 65-100 Feature:

• For water and similar neutral media
• Flow range for water: 25 – 400 m³/h
• Ambient temperature: Up to 80 °C
• Differential pressure: Up to 10 bar
• Viscosity: Up to 50 cSt
• Coil enclosure: Up to IP67
• Flange connections: 2 1/2, 3 and 4”
• Water hammer damped
• Built-in filter for protection of pilot system
• Seal material: EPDM and NBR
