Alcon 68 Series 2 Way Cryogenic Solenoid Valve

share
Alcon 68 Series 2 Way Cryogenic Solenoid Valve
Manufacturer: Alcon

68 Series Cryogenic 1/8” - 2” Normally Closed

2 Way Special Purpose Solenoid Valves

More+
Features Model Document
  • Controls Cryogenic Media down to -321ºF
  • Degreased and Individually Packaged for Cryogenic Service
  • Larger Porting for High Cv
  • Teflon® - PTFE Seals
  • Choice of Brass or Stainless Steel Valve Body
  • Technical Specification
  • Standard Body Material: Brass 3/8” to 1” / Bronze 1-1/4” to 2”
  • Optional Body Material: Stainless Steel
  • Standard Seal Material: PTFE -321°F to +32°F
  • Coil Voltage DC: 12v, 24v
  • Coil Voltage AC (60 Hz): 24v, 120v, 220v
  • Standard Protection Class: NEMA 2 (Metal Enclosure as shown)
  • Electrical Connection: 1/2” NPT Conduit Hub with 18” leads
  • Coil Insulation: Class H suitable for continuous duty
  • Ambient Temperature: +14ºF to +122ºF
  • Media: Cryogenic
Mfr. Part No. Description
68-44-24-12 Pipe size:1/4'';orifice mm:4.5;Cv:0.53
68-45-24-12 Pipe size:1/4'';orifice mm:6.0;Cv:0.70
68 ACP3X Pipe size:3/8'';orifice mm:16.0;Cv:3.5
68 ACP4X Pipe size:1/2'';orifice mm:16.0;Cv:4.9
68 ACP6X Pipe size:3/4'';orifice mm:16.0;Cv:6.3
68 ACP7X Pipe size:1'';orifice mm:25.0;Cv:8.3
68 ACP8X Pipe size:1-1/4”;orifice mm:30.0;Cv:20.9
68 ACP9X Pipe size:1-1/2”;orifice mm:30.0;Cv:20.9
68 ACP10X Pipe size:2”;orifice mm:32.0;Cv:24.5

Inquiry

Your Name: * name not null!
Email: * name not null!
Additional Information: * name not null!
Add more information ＋ ( Optional )
Code: *
click

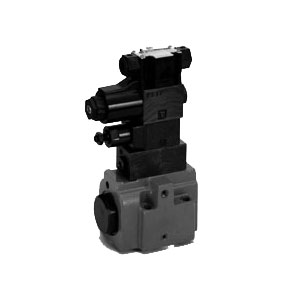

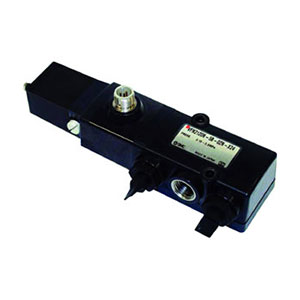

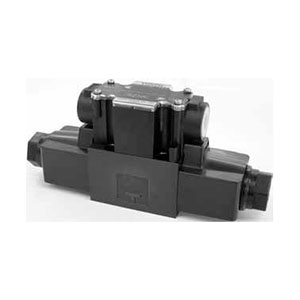

SIMILAR PRODUCT
