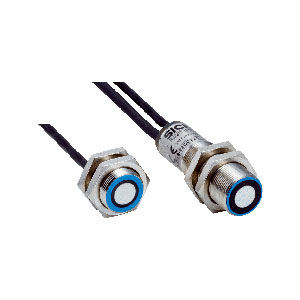

Sick UD18 Ultrasonic sensor

Manufacturer: Sick

Double layer and splice detection for paper, cardboard, metal, and plastic.

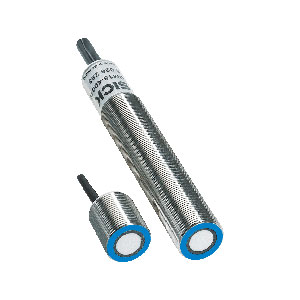

The ultrasonic double layer detection UD18-2 consists of a sender and a receiver with integrated evaluation unit. The ultrasonic double layer detection UD18-2 is used for contact-free detection of missing, single and double (more than one) material layers and other laminar materials.

More+

Features Applications Model

Material classifications: no layers, single layer, double layers
Plug-and-play, sensitivity levels that can be selected, taught in, and changed during operation
Up to four individual sensitivity levels
Variable mounting distance
LEDs visible from any direction
Immune to dirt, dust, and humidity

Double layer detection for paper, cardboard, film, sheet metal, wafers, PCBs, and chip cards
Checking material transportation upstream of presses, printing machines, and cutting machines
Splice and label detection
Packaging, processing, printing, paper, electronics, solar, metal, automotive, and supply industries

Mfr. Part No.	Description
UD18-22CC221	6058910, 2.5 ms, 2 x PNP (200 mA)
UD18-22CC241	6058911, 2.5 ms, 2 x NPN (200 mA)
UD18-22DC221	6058914, 5.5 ms, 2 x PNP (200 mA)
UD18-22DC241	6058915, 5.5 ms, 2 x NPN (200 mA)
