Maximum reliability as a result of opto-ASICSs with Chip-on-Board technology.
Square flange, servo and face mount options with 1/4”, 3/8” and 10 mm solid shafts.

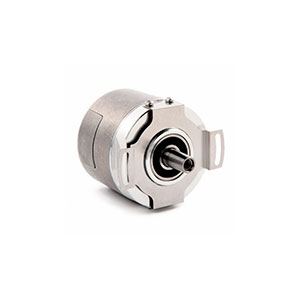

Whether with square flange, servo flange with connector or cable outlet, SSI or Parallel interface – ARS 20/25 single-turn absolute encoders will meet virtually any application profile.
| Mfr. Part No. | Description |
| ARS20-26408192 | Operating torque:2.6 Ncm;Start up torque:3.4 Ncm |
| ARS20-26432768 | Shaft / Flange design:Solid shaft, servo flange;Shaft diameter:3/8 " |
| ARS20-26K08192 | Shaft / Flange design:Solid shaft, servo flange;Shaft diameter:3/8 "; Interface:5 ... 26 V, Open Collector |
| ARS20-26K32768 | Shaft / Flange design:Solid shaft, servo flange; Shaft diameter:3/8 "; Interface:5 ... 26 V, Open Collector |
| ARS20-67432768 | Shaft diameter:3/8 " ; Interface:5 V, TTL;Interface features::Gray; Connection type:Connector, MS, 23-pin, radial |
| ARS20-27408192 | Shaft / Flange design:Solid shaft, servo flange; Shaft diameter:3/8 "; Interface:5 ... 26 V, Open Collector |
| ARS20-27K08192 | Shaft diameter:3/8 " ;Interface: 5 ... 26 V, Open Collector;Interface features:Gray; Connection type:Cable, radial, 1.5 m |
| ARS20-2G408192 | Shaft / Flange design:Solid shaft, square flange; Shaft diameter:3/8 "; Interface:5 ... 26 V, Open Collector |
| ARS20-66K08192 | Type:Rotary;Shaft / Flange design:Solid shaft, servo flange; Shaft diameter:3/8 "; Interface:5 V, TTL |
| ARS20-6GK08192 | Type:Rotary;Shaft / Flange design:Solid shaft, square flange ; Shaft diameter:3/8 "; Interface:5 V, TTL |
| ARS20-F6K08192 | Type: Rotary; Shaft / Flange design:Solid shaft, servo flange; Shaft diameter:3/8 "; Interface:10 ... 30 V, Parallel |
| ARS20-FGK32768 | Shaft / Flange design:Solid shaft, square flange; Shaft diameter:3/8 "; Interface:10 ... 30 V, Parallel |
| ARS20-FGK08192 | Shaft diameter:3/8 " ;Interface: 10 ... 30 V, Parallel;Interface features:: Gray;Connection type:Cable, radial, 1.5 m |
| ARS20-FG432768 | Interface: 10 ... 30 V, Parallel; Interface features:Gray; Connection type:Connector, MS, 23-pin, radial |
| ARS20-FG408192 | Shaft / Flange design:Solid shaft, square flange; Shaft diameter:3/8 "; Interface:10 ... 30 V, Parallel |
| ARS20-FFK32768 | Moment of inertia of the rotor: 54 gcm²;Measuring step:360°/number of steps |
| ARS20-FFK08192 | Shaft / Flange design:Solid shaft, square flange; Shaft diameter:3/8 "; Interface:10 ... 30 V, Parallel |
| ARS20-FF432768 | Type:Rotary; Shaft diameter:3/8 "; Interface:10 ... 30 V, Parallel ; Connection type:Connector, MS, 23-pin, radial |
