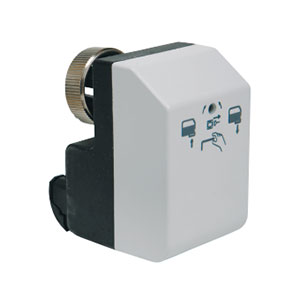

Schneider MZ20A, MZ20B Zone Valve Actuator
Manufacturer: Schneider

The MZ20 is an electro-mechanical zone valve actuator designed for use with the VZ29, VZ39 and VZ49 valves. Reliable long term operation is provided by the optimal design without feedback potentiometer or end switches.

The actuator provides exact valve position and flow adjustment due to the 100 second running time.

More+
Features Model
  • Input voltage MZ20A: 24 V AC, 50/60 Hz
  • Input voltage MZ20B: 24V or 230V AC 50/60 Hz
  • Power consumption MZ20A: 1 VA
  • Power consumption MZ20B: 0.5 VA
  • Speed: 18 s/mm (50 Hz) - 15 s/mm (60 Hz)
  • Temperature Working: -5 to +55°C
  • Storage: -25 to +65°C
  • Stem force: 200 N
  • Max stroke: 6.5 mm
  • Connection cable: 3 wires 1.5 m
  • Protection class: IP 43
Mfr. Part No. Description
MZ20A 845-5051-000, Selectable
MZ20A-R 845-5052-000, 0-10V
MZ20B-24 845-5001-000, 3P-24V AC
MZ20B-230 845-5003-000, 3P-230V AC
