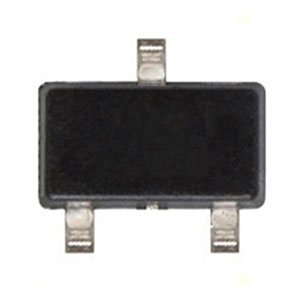

Honeywell VF360NT, VF360ST High sensitivity latching digital Hall-effect position sensor

Manufacturer: Honeywell

The VF360NT and VF360ST High Sensitivity Latching Digital Hall-Effect Sensor ICs are small, sensitive and versatile devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed to respond to alternating North and South poles.

The VF360NT is turned ON by a North pole, while the VF360ST is turned ON by a South pole.

More+

Features Applications Model Document

Qualified to the AEC-Q100 standard for potential use in automotive applications
Fastest response time in its class [1.5 μs]
Repeatable magnetics (no jitter)
No additional electronic noise generated by sensor
Non-chopper-stabilized design
Subminiature SOT-23 surface mount package supplied on tape and reel (3,000 units per reel)
3 Vdc to 24 Vdc
Built-in reverse polarity protection
RoHS-compliant material

BLDC motor commutation for automotive applications: Air input flap to engine, convertible roof position, electronic parking brakes, electronic window lifts and anti-pinch power window systems, HVAC blowers, headlights, power doors, mirrors and tail gates, seat motors, steering, windshield washers and wipers
Speed and RPM sensing: Motors and fans; tachometer and counter pickup
Flow rate sensing

Mfr. Part No.	Description
VF360NT	North pole activated, SOT-23, 3000 units/pocket tape and reel
VF360ST	South pole activated, SOT-23, 3000 units/pocket tape and reel
