Honeywell SNDH-T Series speed and direction sensor

Manufacturer: Honeywell

The SNDH-T Series is a dual differential hall sensor that provides speed and direction information using a quadrature output with signals 90 degree phase shifted from each other. Target direction is determined by output ead/lag phase shifting.

This product is designed for applications where extremely high resolution is required at wide frequency ranges, 1 kHz to 15 kHz, and large air gaps.

More+

Features Applications Model Document

Hall-effect magnetic sensing technology
Advanced performance dynamic offset self calibration
Air gap up to 2 mm [0.08 in]
Near zero speed
Automotive under-the-hood packaging integrity
EMI hardened
High frequency switching capability (1 Hz to 15 kHz)
-40 ºC to 150 ºC [-40 °F to 302 °F] continuous operating temperature
Multiple connector options
Short circuit protection
Reverse voltage protection
Open collector output
Low jitter output
O-ring seal

Steering position
Tachometers/counter
Encoders
Speed and direction of gears and shafts in transmissions, hydraulic motors, pumps and gear boxes

Mfr. Part No.	Description
SNDH-T4C-G01
SNDH-T4L-G01
SNDH-T4P-G01
SNDH-T4P-G02

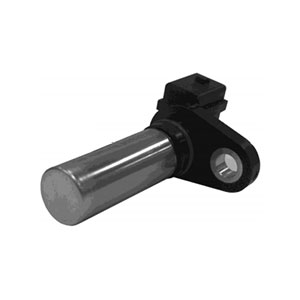

Honeywell SNDH-T Series speed and direction sensor
