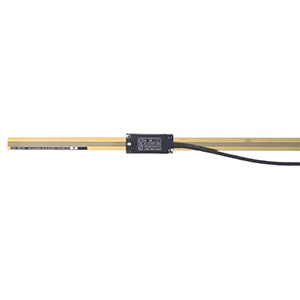

Heidenhain LIDA series linear encoder

Manufacturer: Heidenhain

The LIDA exposed linear encoders are specially designed for high traversing speeds up to 10 m/s, and are particularly easy to mount with various mounting possibilities. Steel scale tapes, glass or glass ceramic are used as carriers for METALLUR graduations, depending on the respective encoder. They also feature a limit switch.

More+

Features Applications Model

Quality of scanning signals displayed by multicolor LED
Continuous monitoring of incremental signals over entire measuring length
Function display of the reference-mark signal
Quick check of correct operation in the field without technical aids

Measuring and production equipment in the semiconductor industry
PCB assembly machines
Ultra-precision machines
High-accuracy machine tools
Measuring machines and comparators, measuring microscopes, and other precision measuring devices
Direct drives

Mfr. Part No.	Description
LIDA 473 / LIDA 483	Accuracy grade: ± 1 µm (only for Zerodur glass ceramic up to ML 1 640), ± 3 µm, ± 5 µm;Weight: 3 g + 0.1 g/mm measuring length
LIDA 477 / LIDA 487	Accuracy grade: ± 3 µm (up to ML 1040); ± 5 µm (as to ML 1240); ± 15 µm1);Weight: 25 g + 0.1 g/mm measuring length
LIDA 479 / LIDA 489	Accuracy grade: ± 3 µm (up to ML 1040); ± 5 µm (as to ML 1240); ± 15 µm1);Weight: 25 g + 0.1 g/mm measuring length
LIDA 277 / LIDA 287	Accuracy grade:± 15 µm;Scale tape cut from roll*:3 m, 5 m, 10 m; Traversing speed: ≤ 600 m/min
LIDA 279 / LIDA 289	Accuracy grade: ± 15 µm;Weight: 20 g/m;Current consumption: < 155 mA
LIDA 475 / LIDA 485	Accuracy grade: ± 5 µm;Weight:115 g + 0.25 g/mm measuring length;Voltage supply:5 V DC ± 0.25 V
