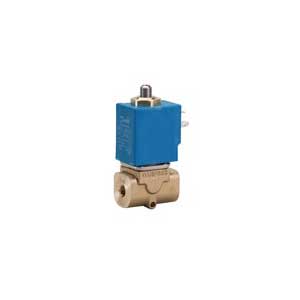

Danfoss EV310B Direct-operated 3/2-way solenoid valve

Manufacturer: Danfoss

EV310B covers a wide range of direct-operated 3/2-way solenoid valves for universal use.EV310B is a real robust valve program with high performance and can be used in all kind of tough working conditions.Clip-on coils can not be used on EV310B.

More+

Features Model

For water, oil, compressed air and similar neutral media
Differential pressure: Up to 20 bar
Ambient temperature: Up to 40 °C
Coil enclosure (cable plug): Up to IP65
Viscosity: Up to 50 cSt
Kv values up to 0.40 m3/h
Thread connection: NC, NO, NC MAN (manual override), NO MAN G 1/8 , G 1/4 and G 3/8
Flange connection: NC FL MAN 32x32 mm

Mfr. Part No.	Description
032U4905	Direct-operated, N C, G 1/4, 3,00 mm, FKM, 0 - 7 bar
032U4906	Direct-operated, N C, G 1/4, 3,50 mm, FKM, 0 - 5 bar
032U4927	Direct-operated, N O, G 1/8, 2,00 mm, FKM, 0 - 16 bar
032U4929	Direct-operated, N O, G 1/4, 1,50 mm, FKM, 0 - 20 bar
032U4930	Direct-operated, N O, G 1/4, 2,00 mm, FKM, 0 - 16 bar
032U4931	Direct-operated, N O, G 1/4, 3,00 mm, FKM, 0 - 7 bar
032U4933	Direct-operated, N O, G 3/8, 2,00 mm, FKM, 0 - 16 bar
032U4934	Direct-operated, N O, G 3/8, 3,00 mm, FKM, 0 - 7 bar
