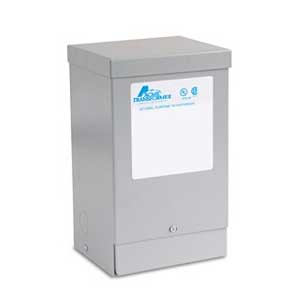

ACME GroupV Three Phase Dry Type Distribution Transformer

Manufacturer: ACME

190/200/208/220/240 Delta Primary Volts - 400Y/231 Secondary Volts - Acme three phase low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

More+

Features Model

UL-3R enclosure meets or exceeds all listing criteria including NEMA, ANSI and OSHA standards
UL Class 180 deg C insulation system 115 deg C rise
Completely enclosed, suitable for indoor/outdoor service
Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
High efficiency and excellent regulation
Sound levels below NEMA standards
Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible form the front
Wiring connections can be made outside of wiring compartment due to the use of flexible leads
Termination - Copper lead wire
Electro static provided on all 60 Hz isolation transformers
190/200/208/220/240 Delta Primary Volts; 400Y/231 Secondary Volts; 3 phase , 60Hz

Mfr. Part No.	Description
T379083S	15 kVA Dry Type Distribution Transformer
TP79085S	30 kVA Dry Type Distribution Transformer
TP79087S	45 kVA Dry Type Distribution Transformer
TP79088S	75 kVA Dry Type Distribution Transformer
