Vishay FES16xT/FESB16xT Ultrafast Plastic Rectifier
Manufacturer: Vishay

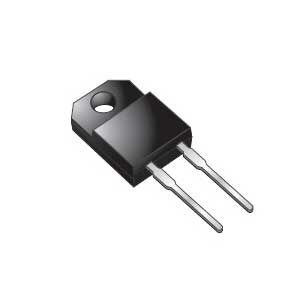

  • Case: TO-220AC, ITO-220AC, TO-263AB
  • Molding compound meets UL 94 V-0 flammability rating
  • Base P/N-E3 - RoHS-compliant, commercial grade
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
  • Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
  • E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test
  • Polarity: As marked
  • Mounting Torque: 10 in-lbs max.
More+
Features Applications Model
  • Power pack
  • Glass passivated pallet chip junction
  • Ultrafast recovery time
  • Low switching losses, high efficiency
  • High forward surge capability
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
  • Solder dip 275 °C max. 10 s, per JESD 22-B106 (for TO-220AC and ITO-220AC package)
  • AEC-Q101 qualified

For use in high frequency rectifier of switching mode power supplies, inverters, freewheeling diodes, DC/DC converters, and other power switching application.
