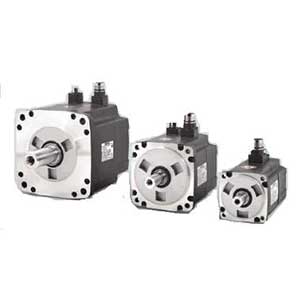

Siemens SIMOTICS S-1FL6 Servo Motor

Manufacturer: Siemens

SIMOTICS S-1FL6 are naturally cooled, permanent-magnet synchronous motors where the heat is dissipated through the motor surface. The motors can be simply and quickly installed using the full thread and quick- release connectors.The motors have a 300 percent overload capability and can be combined with the SINAMICS V90 drives to create a powerful servo system with high functionality. Incremental or absolute encoders can be selected depending on the application. SIMOTICS S-1FL6 motors have a high degree of dynamic performance, wide speed control range and high shaft end and flange precision.

More+

Features Applications Model

3 shaft heights: 45mm, 65mm, 90mm
Rated torques from 1.27 Nm up to 33.40 Nm
Rated speed of 2000 or 3000 rpm
Incremental encoders TTL 2500 S/R (13-bit resolution) and absolute encoders ( 20-bit resolution) are available
Degree of protection IP65, natural cooling
Optional holding brake
With plain shaft or feather key

Handling machines e.g. pick & place machines
Packaging machines e.g. labeling machines horizontal packaging machines
Automatic assembly machines
Metal forming machines
Printing machines e.g. screen printing machines
Winders and unwinders

Mfr. Part No.	Description
042−1AF	Horsepower (HP) 0.54
044−1AF	Horsepower (HP) 1.02
062−1AC	Horsepower (HP) 1.36
064−1AC	Horsepower (HP) 2.04
066−1AC	Horsepower (HP) 2.38
067−1AC	Horsepower (HP) 2.72
090−1AC	Horsepower (HP) 3.40
092−1AC	Horsepower (HP) 4.76
094−1AC	Horsepower (HP) 6.80
096−1AC	Horsepower (HP) 9.52
