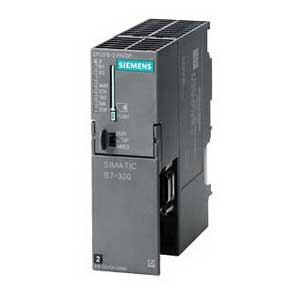

Siemens CPU317F-2DP CPU Unit

Manufacturer: Siemens

The safety-related and standard communication between the central controller and the distributed stations is performed via PROFIBUS DP. The specially developed PROFIBUS profile PROFIsafe allows the transmission of user data associated with the safety function within the standard data telegram. Additional hardware components, e.g. special safety buses are not required. The necessary software is either integrated in the hardware components as an expansion of the operating system or loaded into the CPU later as a certified software block.

More+

Features Applications Model

The fail-safe CPU with a large program memory and quantity framework for demanding Applicaiton
For constructing a fail-safe automation system for plants with increased safety requirements
Complies with safety requirements to SIL 3 acc. to IEC 61508 and PL e acc. to ISO 13849.1
Fail-safe I/O modules can be connected in a distributed configuration to both integral PROFIBUS DP interfaces (PROFIsafe)
Fail-safe I/O modules of the ET 200M range can also be centrally connected
Standard modules for non-safety-related Applicaiton can be operated centrally and decentralized

The CPU 317F-2 DP allows a fail-safe automation system to be implemented for plants with increased safety requirements, especially in manufacturing automation.
Distributed I/O stations containing fail-safe I/O modules can be connected through the two integrated PROFIBUS DP interfaces. The fail-safe I/O modules of ET 200M can also be installed in central and safety-related configurations.
The safety-oriented communication between the F-CPU and the fail-safe I/O modules is performed on the basis of the PROFIsafe profile.
A SIMATIC Micro Memory Card is required for operation of the CPU.

Mfr. Part No.	Description
6ES7317-6FF04-0AB0	CPU317F-2DP, 1.5 MB
