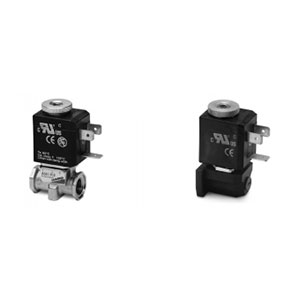

ASCO 8262 Series Direct acting solenoid poppet valve

Manufacturer: ASCO

Direct Acting Poppet - 1/8" - 1/4"

Direct acting solenoid poppet valves are available in normally closed and normally open constructions, AC or DC operated in brass or stainless steel bodies. High flow and a variety of elastomers for a wide range of applications.

Direct Acting, Normally Closed

General Service Solenoid Valves

Brass or Stainless Steel Bodies 1/8" to 3/8" NPT

More+

Features Model

Welded core tube provides higher pressure ratings
Reliable, proven design with high flows
Small poppet valves for tight shutoff
Wide range of elastomers for specialty service applications
Mountable in any position
Tapped mounting holes in body standard
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.
(To order, add prefix “EF” to catalog number)
See Optional Features Section for other available options.

Mfr. Part No.	Description
8262H001	Max Op. Pressure(PSI):750 / 725 / 750 Pipe Size(NPT):1/8;Orifice Size:3/64;
8262H002	Max Op. Pressure(PSI):185 / 120 / 180 Pipe Size(NPT):1/8;Orifice Size:1/8;
8262H020	Max Op. Pressure(PSI):235 / 160 / 160 Pipe Size(NPT):1/4;Orifice Size:3/32;
8262H021	Max Op. Pressure(PSI):500 / 270 / 350 Pipe Size(NPT):1/4;Orifice Size:3/32;
8262H022	Max Op. Pressure(PSI):130 / 90 / 110 Pipe Size(NPT):1/4;Orifice Size:1/8;
8262H090	Max Op. Pressure(PSI):27 / 21 / 23; Pipe Size(NPT):1/4;Orifice Size:9/32;
8262H138	Max Op. Pressure(PSI):160 / 125 / 145; Pipe Size(NPT):1/4;Orifice Size:1/8;
8262H230	Max Op. Pressure(PSI):90 / 90 / 90; Pipe Size(NPT):1/4;Orifice Size:9/32;
8262H265	Max Op. Pressure(PSI):30 / 30 / 30; Pipe Size(NPT):1/4;Orifice Size:9/32;
SC 8262H200	Max Op. Pressure(PSI):1500 / 1500 / 1500; Pipe Size(NPT):1/4;Orifice Size:3/64;
8262H007	Max Op. Pressure(PSI):185 / 90 / 180; Pipe Size(NPT):1/4;Orifice Size:1/8;
8262H019	Max Op. Pressure(PSI):750 / 550 / 640; Pipe Size(NPT):1/4;Orifice Size:3/64;
8262H086	Max Op. Pressure(PSI):370 / 160 / 330; Pipe Size(NPT):1/4;Orifice Size:3/32;
8262H208	Max Op. Pressure(PSI):100 / 100 / 100; Pipe Size(NPT):1/4;Orifice Size:7/32;
8262H220	Max Op. Pressure(PSI):210 / 145 / 200; Pipe Size(NPT):1/4;Orifice Size:5/32;
